HANDFORMER HF 100 PA

GUIDE THE WORKPIECE WITH BOTH HANDS, USING THE ECKOLD HANDFORMER HF 100 PA!

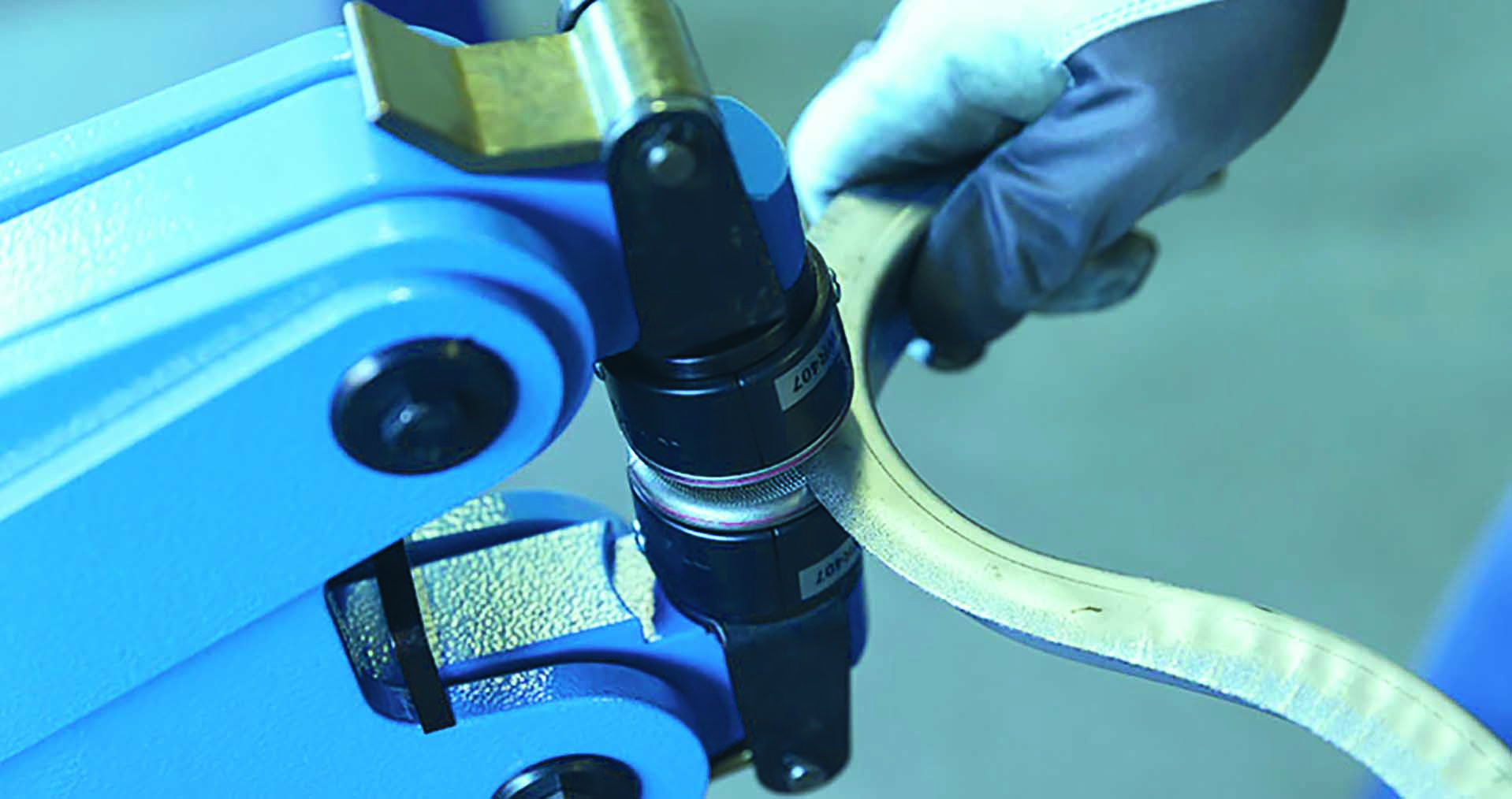

When working with the ECKOLD Handformer HF 100 PA, you can use both hands to hold and guide your workpiece, while the precision strokes are triggered with a foot pedal. The Handformer HF 100 PA is therefore the ideal device for the forming of large, unwieldy workpieces. The machined is pneumatically driven and features a pressure control device to prevent tool overload. Each machining process is actuated by pressing the foot switch, whereby the stroke force is proportional to the force applied to the pedal. This machine is thus a user-friendly alternative to the standard ECKOLD Handformer.

Advantages



  • Adjustable working height

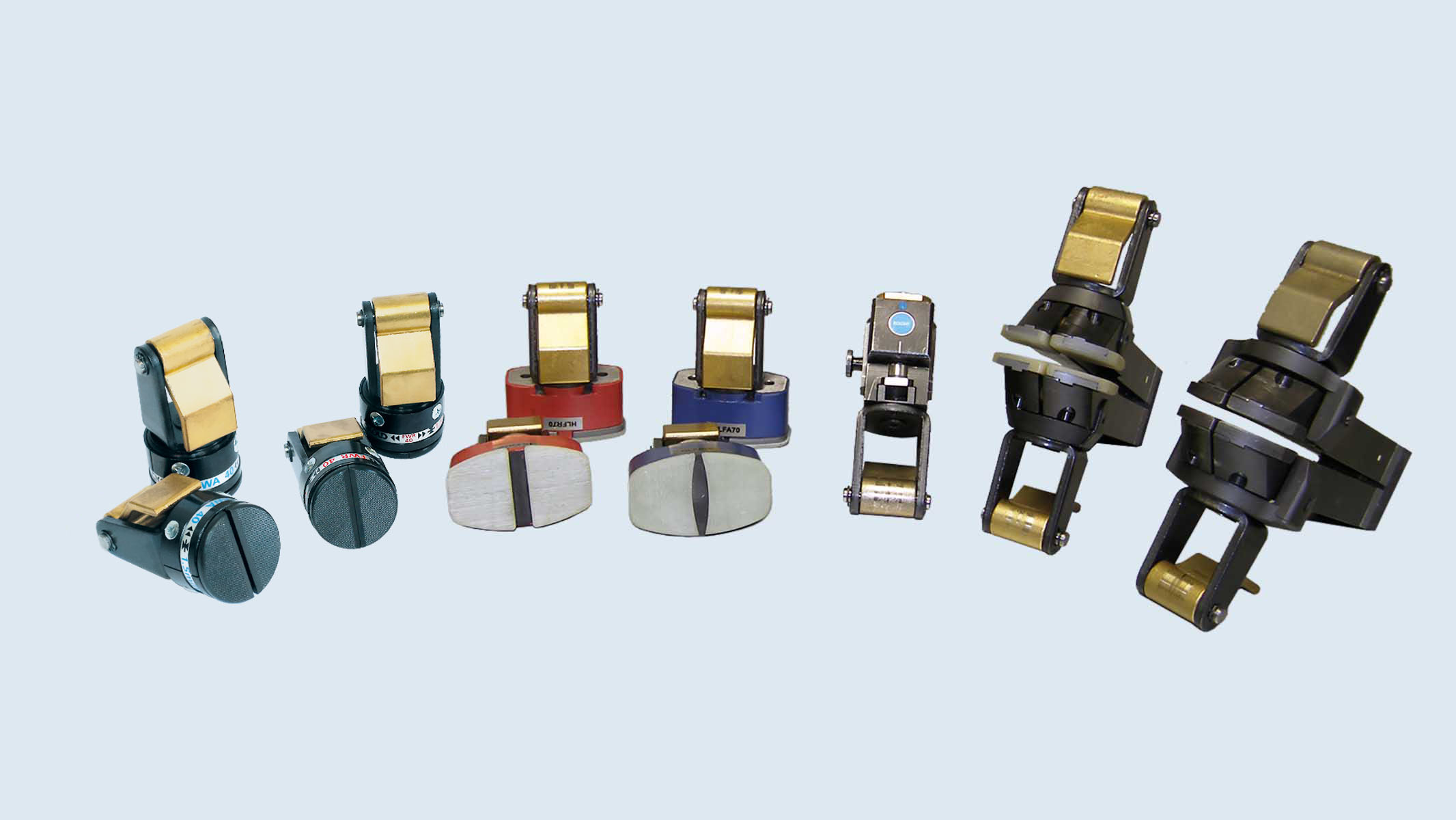

  • Quick tool change
  • Tool storage trays
  • Stop for precision guidance of workpieces

Technical data



Throat, horizontal100 mm
Throat, vertical60 mm
Sheet thickness steel (Rm ~400 N/mm²)max 1.5 mm

Sheet thickness Al (Rm ~250 N/mm²)

max 2.0 mm
Sheet thickness stainless steel (Rm ~600 N/mm²)

max 1.0 mm
